The FD95 Rotary Perforator/Creaser has a three-tire feeding system to process sheets up to 13.8" x 19", as fast as 7,080 sheets per hour, and can create up to 5 parallel perforations and/or creases in a single pass. Operation is easy: load printed sheets, adjust the side guides and press the power button.
Standard setup includes two perforating wheels, one creasing wheel and paper guides. Options include additional perforating sets and guide strips to accommodate 55-180 gsm paper.

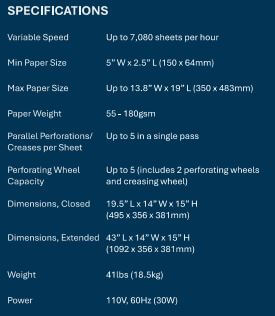

| Speed: | Up to 7,080 per hour |
Paper size:
| Min: 5" W x 2.5" L (150mm x 64MM0
Max: up to 13.8" W x 19" L (350 x 483mm)
|
Paper Weight:
| 55-180 gsm. (55-60gsm processed w/optional guide strips)
Optimal paper weight for creasing in 150 gsm
|
Parallel perfs/creases
| Up 5 per sheet in single pass
|
| Perforating wheel capacity:*** | Up to 5 (including 2 perf wheels and 1 creasing wheel)
|
Feed table capacity:
| 1.18" (30mm) |
| Dimensions: | Closed: 19.5" L x 14" W x 15" H (495 x 356 x 381mm)
Fully extended: 43" L x 14" W x 15" H (1092 x 356 x 381 mm)
|
| Weight: | 41 lbs. (18.5 kg.) |
| Power: | 110V, 60 Hz (30W) |
